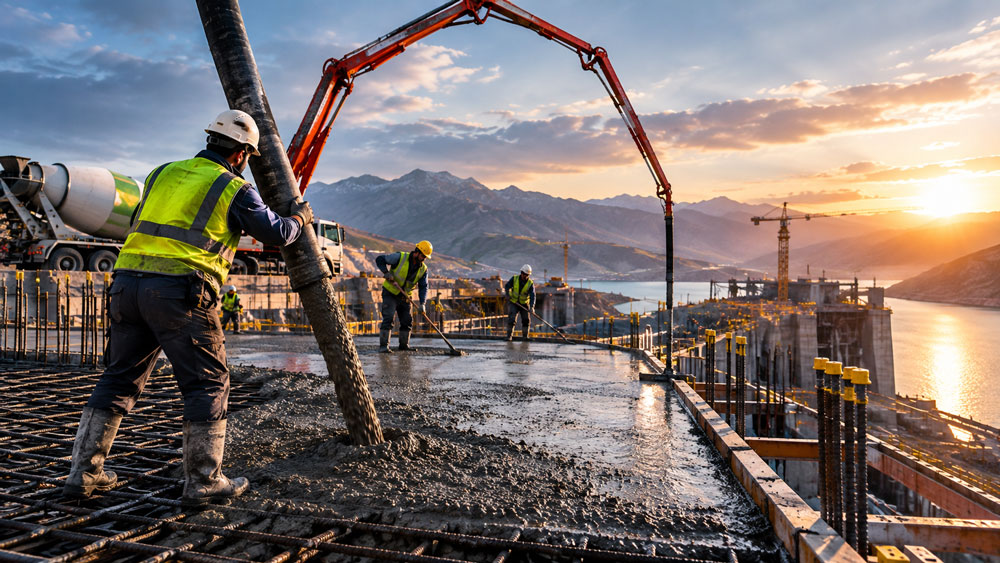

Advanced Concrete Placement Methods in Large-Scale Projects
A major concrete pour usually begins with the sound of a pump; but its success is determined long before the pump is ever switched on.
It is not yet six in the morning. Truck mixers roll into the site one by one, concrete temperature and slump are checked, pumps stand ready, and the execution team conducts its final inspections on reinforcement and formwork.
From the outside, it might look like nothing more than a routine operation: take the concrete from the truck, pour it into the formwork, done.
But when you are dealing with a foundation of several thousand cubic meters, a high-rise structure, or a coastal project, the story changes entirely.
At that scale, placing concrete is an interconnected chain—from the mix design and haul time to the temperature inside the concrete, the method of compaction, the curing regime, and even the unexpected event that could bring the whole operation to a halt in the middle of the pour.
If any one link in this chain fails, the problem may not be visible that very day; but the structure will pay for it years later.
When Concrete Volume Rises, Errors Are No Longer Trivial
Suppose you are executing a raft foundation with roughly 4,000 cubic meters of concrete and a thickness of several meters.
At such a scale, a simple stoppage is far more than a few hours of delay.
If one section begins to set before the next layer arrives, a cold joint may form. If that joint appears in an unfavorable location, it can compromise the continuity and structural performance of the section—and in moist or saline environments, it can provide a direct pathway for the intrusion of aggressive agents.
On the other hand, a large volume of concrete means more heat that must be managed.
The cement hydration reaction generates heat, and in a thick section, that heat does not easily escape from the core of the concrete. As a result, the interior of the concrete can run considerably hotter than its surface.
If that temperature differential grows too large, the young concrete comes under thermal stress and cracks develop—cracks that may look insignificant in the first few days but can later become pathways for moisture intrusion and chloride ion ingress.
So in mass concrete placement, the question is not merely how much concrete we pour; it is how that concrete behaves at that given volume.
Concrete Changes from the Plant to the Formwork
One common mistake is to evaluate concrete quality only at the moment it leaves the batching plant.
Concrete is a time-dependent material.
The concrete may be perfectly compliant with the mix design at the plant, but a long delay en route, traffic, a queue at the site gate, or equipment downtime can alter its condition and cause slump loss.
This is where one particularly common—and dangerously wrong—decision its condition and cause slump loss.
This is where one particularly common—and dangerously wrong—decision enters the picture:
“Let’s just add some water to make it fluid again.”
That may resolve the visible problem in a few minutes, but it can raise the water-to-ce, truck arrivals must be coordinated with the actual pumping capacity, and, where necessary, slump-retaining admixtures should be used.
Even tools like GPS, when used properly, cease to be mere logistical instruments; they become part of quality control.
Because in a large concrete pour, time is itself one of the components of the concrete.
Structural Scale: Where Errors Become Irreversible
In conventional structures, execution errors are contained with localized remedial measures. But in a raft foundation of 4,000 cubic meters and a 3-meter thickness, the physics of the structure follow different rules. A hidden cold joint forming at mid-depth in such a section severely weakens the shear capacity of the foundation and opens a direct route for the ingress of saline groundwater—a defect that even high-pressure injection of epoxy and polyurethane resins can never fully restore to the design load-bearing capacity. Thermal concentration, meanwhile, becomes critical at such large dimensions. The heat trapped by the hydration reaction at the core of the foundation creates an asymmetric temperature field. The temperature differential between the core and the surface exposed to ambient airflow generates severe thermal tensile stresses. The moment these stresses exceed the tensile strength of the young concrete, deep cracks form—cracks that become the arteries for chloride ion penetration deep into the reinforcement network.
Mix Design Must Also Understand the Environment
Concrete designed for an ordinary building in a dry climate is not necessarily the right choice for a coastal structure.
In chloride-laden environments, compressive strength is not the only concern; durability becomes paramount.
A primary strategy is to reduce the permeability of the concrete. Depending on the project specifications, the water-to-cementitious-materials ratio can be kept low, and next-generation superplasticizers such as PCE can be used to maintain adequate workability despite the reduced water content.
In some designs, silica fume can densify the cement paste structure and reduce the voids between particles.
Polypropylene fibers, under suitable conditions, can also help control a portion of the plastic-shrinkage cracking that occurs in the early hours—an issue of particular importance in hot, dry, or windy environments.
But here is a critical point:
A good mix design is not a ready-made, one-size-fits-all prescription for every project.
Member dimensions, climatic conditions, the distance from the batching plant to the site, the pumping method, the density of reinforcement, the required strength, and the durability requirements must all be considered together.
In Mass Concrete, Temperature Must Also Be Managed
This is where one of the most important differences between ordinary and mass concrete placement reveals itself.
Sometimes the problem is not that the concrete has become too cold; the problem is that it has become too hot.
To control this, technical specifications and project standards typically set limits on the internal concrete temperature and the core-to-surface temperature differential, in order to reduce the risk of thermal cracking.
The solution is rarely a single action.
Aggregates may be cooled before placement, or a portion of the mixing water may be replaced with ice, to keep the fresh concrete temperature low.
But the work does not end once the concrete enters the formwork.

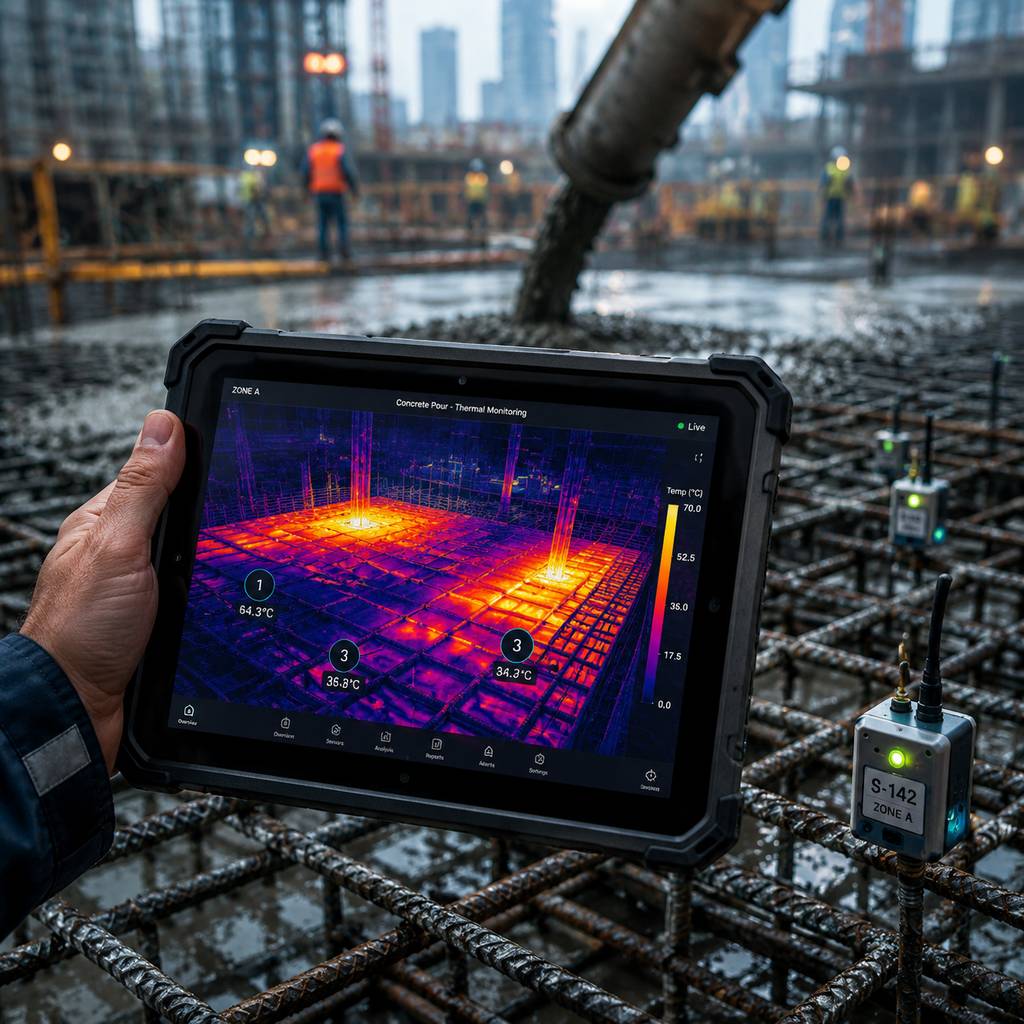

In sensitive projects, thermocouples and data loggers are installed at various points across the section and record temperature over time. If the temperature trend indicates a growing thermal differential, measures such as cooling pipes or appropriate insulation can be deployed to control the cooling rate.
This means that, instead of waiting for cracks to form and then debating the cause, we observe the concrete’s behavior the very moment it happens.
At the Water’s Edge, Durability Starts from Day One
Coastal and marine structures have an invisible enemy: chlorides.
Moisture, salt, and wet-dry cycles can create harsh conditions for both concrete and reinforcement—particularly in the splash zone, where the structure is constantly exposed to water, air, and oxygen.
Under such conditions, concrete quality, the depth of cover over the reinforcement, and the choice of steel-protection system all gain greater importance.
If the concreting is carried out underwater, yet another issue arises: the water must not wash away the cement paste or cause segregation of the aggregates.
This is why, paste or cause segregation of the aggregates.
This is why, in methods such as tremie, the concrete is conveyed through a pipe to the desired location, and the pipe outlet is kept embedded in the fresh concrete, so that the direct and destructive contact between flowing water and the concrete is controlled as much as possible.
on “good concrete.”
A correct execution method is itself part of the structural durability design.
A Professional Site Prepares for Plan Failure Too
No large pour ever proceeds according to the ideal scenario alone.
A pump may break down. Power may fail. A truck may arrive late. A haul route may be closed, or part of the equipment may malfunction.
The professional question is not, “What do we do if nothing goes wrong?”
The question is:
What exactly do we do when something goes wrong?
That is why the locations of emergency construction joints must be predetermined. Backup equipment, emergency generators, and—in critical projects—even a reserve pump can all be part of the plan.
If a stoppage becomes unavoidable, details such as surface preparation for the joint, starter bars, and the method of resuming the pour must be defined in advance.
This is exactly where field experience proves its worth.
True planning means not only having a plan for good execution; it means being prepared for the plan to fail.
Execution Quality Reveals Itself in Simple Details
On site, the most important decisions are sometimes remarkably simple.
Before starting, formwork, reinforcement, levels, pump routes, and equipment must all be checked.
During placement, concrete must not be moved horizontally by dragging the vibrator hose. Vibration is meant to expel entrapped air and achieve proper compaction—not to transport concrete.
Excessive vibration, too, can cause segregation of the aggregates and the accumulation of laitance on the surface.
And afterwards, curing.
Once the concrete has undergone initial set, its work is not finished. Maintaining moisture and preventing rapid drying or sudden thermal shock during the early days is essential to achieving the expected performance.
These simple details are precisely what separates “the pour was done” from “the pour was done correctly.”
When the Eye Is Not Enough, Use Data
In large projects, monitoring everything by sight alone is no longer feasible.
Three-dimensional laser scanning and photogrammetry can compare execution status against the BIM model before placement and reveal certain discrepancies early.
After execution, non-destructive methods such as UPV can be used to assess certain concrete characteristics and identify potential anomalies.
One of the more interesting applications is concrete maturity sensors.
Rather than simply stating, “X days have passed since the pour,” we can use time-temperature data to obtain a far more accurate picture of the concrete’s strength gain and make decisions—such as formwork removal—based on the concrete’s actual condition.
Technology here is not meant to replace the engineer.
It is meant to make measurable what we previously merely guessed.
Green Concrete Is about More Than the Environment
In projects that consume thousands of cubic meters of concrete, even partially substituting the cementitious materials can have a significant impact.
Using supplementary cementitious materials such as GGBS or fly ash, where suitable for the design, can reduce clinker consumption and consequently lower the carbon footprint.
Conversely, some of these materials can help reduce the rate of heat generation and improve certain durability characteristics.
Of course, an important principle applies here as well:
Reducing environmental impact must not come at the expense of structural performance.
The mix must be calibrated so that durability, strength, construction schedule, and project requirements are all satisfied simultaneously.
Technology Is Worth It When It Prevents a Bigger Cost
Purchasing sensors, specialized admixtures, cooling equipment, or a reserve pump may appear at first glance to be added cost.
But the real cost must be examined elsewhere.
What does a structural crack cost?
What does it cost to repair a damaged underground section?
If reinforcement corrosion begins a few years later, how much more difficult and expensive will it be to access that section?
And if an execution problem delays commissioning or sparks a contractual dispute, the cost is not limited to the concrete and the repair.
In large projects, many advanced technologies are, in fact, used to buy certainty—certainty that a predictable risk will not later turn into a genuine crisis.
In the End, What Remains Is Not Just Concrete
A successful pour cannot be measured merely by the number of truck mixers, the pumping rate, or the volume of concrete placed.
The real questions are:
Has the concrete been under control from the moment of production to the moment of placement?
Have temperature and time been managed?
Has the surrounding environment been accounted for in both the mix design and the execution method?
Were we prepared for unexpected stoppages?
Did execution quality rely only on visual observation, or did we also have data at our disposal?
And most importantly—will the work we do today still deliver, years from now, the same result for which it was designed on paper?
In large-scale projects, concrete placement is not merely an execution operation.
It is a combination of materials science, time control, thermal management, climatic awareness, site discipline, and the proper use of technology.
Perhaps that is precisely why the quality of a concrete structure is determined not only in the laboratory or on the drawing.
Part of it is determined at that very hour when the first truck mixer enters the site, and the execution team decides how to respond to whatever happens along the way.
Good concrete is not simply made; it must be properly managed at every point along the entire journey.
When the Earth Refuses to Cooperate: A Narrative from the Edge of Precision
1. Introduction: The Silence of the Mountains and the Anxiety of Data
Standing alone on a ridge, as a thick fog rolls in from the sea to swallow the plains, is where “true engineering” begins. In the technical office, on wide monitors, everything is perfect; contour lines glide over each other with elegance, and coordinates sit in place with millimeter precision. But when you step into the field, that paper-perfect accuracy is the first thing to be challenged.
Surveying in textbooks is a collection of trigonometry and flawless geometry. But in reality, surveying is the “art of extracting truth from chaos.” When you set up a tripod on soft ground or a slippery rock, you are actually entering into a negotiation with nature itself. In these moments, you are not dealing with numbers; you are reporting what is not on the maps—a narrative of the pressure that hidden layers of the earth exert on our shoulders and our equipment.
2. Battle Against the Impossible: When the Climate Turns Against the Gear
If you have worked in rugged coastal areas, “wind” is not just a meteorological variable; it is an “active adversary.” The constant, sharp winds blowing from the deep blue expanse, cutting through rocky valleys with a force that defies balance, are every surveyor’s nightmare.
We talk about tripod stability, but in high winds, no tripod is truly “fixed.” When you set up a Total Station in such an environment, you are battling “micro-vibrations.” The camera lens might shift by a millimeter—a movement invisible to the naked eye, but one that eats away at precision like a parasite. We have learned that in these conditions, “patience” is the only solution; waiting for a lull in the gale, perhaps for just a second, so the instrument can catch its breath and lock onto the target.
But wind doesn’t just shake; it steals “temperature.” In this specific geography, sudden temperature shifts are a biological and technological challenge. When the sun breaks behind heavy coastal clouds and suddenly heats the rocky surface beneath our feet, our equipment suffers thermal shock. The metal of the tripod and the instrument’s body expand. In theory, the coefficient of linear expansion is a small number, but when you are conducting large-scale topography, these tiny changes over hours of work create errors that, without “field intuition,” you would never detect.
Dust, too, has its own story. In regions with loose, powdery soil, every step raises a cloud of suspended particles. For surveying equipment, these particles are poison. Total stations, designed for controlled, laboratory-like environments, expose their innards to the finest dust in these “tragic” conditions.
As field engineers, we have learned that “preventive maintenance” is not an organizational protocol; it is a survival instinct. When dust infiltrates the sensitive gears of horizontal and vertical motion, you hear a faint whine from the machine—a sound telling you that your angular reading precision might no longer be in the millimeter range. This is the point where an amateur operator differs from a “hardened pro.” The first packs up and goes home; the second, with hands shaking from cold or intense heat, spends hours cleaning the lenses and axes. Because they know that tomorrow, this machine is their only companion in that rugged expanse.
3. When Signals Lie: Battling a Restricted Sky
The greatest “modern deception” in surveying is over-reliance on GNSS or satellite systems. In open plains, everything is perfect; satellites dance in the sky, and your “fixed” precision reaches less than a few centimeters. But step into deep valleys or beneath tall rock walls, and the sky becomes “restricted.”
In this scenario, you grapple with a phenomenon called Multi-path. In these rugged environments, satellite signals don’t reach your antenna directly; they strike rocky walls, reflect, and then reach the receiver. For our poor receiver, all of this is “real signal.” The result? A multi-meter error hidden in your coordinates.
I have often seen teams with the world’s most expensive equipment fall into confusion in these rugged points. They record coordinates that look “accurate” on the screen, but the reality of the ground is something else entirely. In such moments, no software will help you. You must stop. You must sit, look at the horizon, and ask yourself: “Does the geometry of this environment allow the signal to reach me directly?”
This is exactly where you must set aside “technology” and rely on “engineering intuition.” We have learned that in these valleys, when signals lie, we must return to old-school Traverse methods—the same method used a hundred years ago, but with modern precision. This means robust pillars, precise setup, and reliance on absolute angles and distance rather than the “generosity of satellites.” This acceptance of technological failure is perhaps the hardest part of our work: accepting that against the violence of topography, machines are not as efficient as our own brains.
4. The Art of “Adapting” to a Rebellious Land
But is surveying only fighting? No. A major part of our work is the “art of reconciliation with the land.” When it comes to rugged terrain, timing is everything. In coastal areas or steep slopes, the “time of day” is the difference between an accurate map and an error-ridden one.
You might ask why? Because light and atmosphere change throughout the day. The phenomenon of “mirages” or light refraction due to intense ground heat, when conducting long-distance readings, is like a lie the atmosphere tells you. Your instrument’s lens sees air layers dancing. If you attempt to measure distant points at 2 PM, the error caused by light refraction will waste all your hard work.
A seasoned surveyor sets their biological clock with sunrise and sunset. We know our golden window is the early morning or near sunset, when the atmosphere is at its most stable. We “allow” the land to cool, let the air settle, and then we begin. This adaptability is written in no device manual. It is the legacy of experience passed down by those who stood before us and learned: “You cannot force nature; you must accompany it.”
5. The Human Challenge and Cognitive Fatigue in Workspace Solitude
Surveying in remote and rugged areas is not just a physical battle; it is the mind battling itself. When you spend hours among rocks or in barren plains, ambient noise is minimized, and your mind begins to play tricks on you. This “environmental silence” is a double-edged sword. It gives you focus, but it also plants hidden anxiety.
Our greatest psychological pressure comes not from altitude or the sun, but from the “weight of responsibility.” A surveyor knows that every point they record in the device is the foundation of all future construction. If an error occurs in a city building, it might be compensated for with a slight fix or moving a wall. But in large-scale projects executed in pristine areas, today’s one-centimeter error means a large-scale catastrophe tomorrow. This pressure is like an extra burden on the engineer’s shoulders—a burden that no instrument can calibrate.
The difference between a “desk surveyor” and a “field surveyor” is exactly this. The former looks at the device waiting for the clock to strike closing time. The latter looks at the ground, at the topography beneath their feet, and every moment asks themselves: “Was this setup the best choice?” This constant doubt is the most exhausting part of the work. When you return to camp or home at night, it is not physical fatigue that pins you down; it is the fatigue of “hyper-awareness” throughout the day.
We have learned that in these regions, the only way to survive is “routinization.” Routinizing setup, routinizing line-of-sight checks, and routinizing data verification. When your body is tired, your brain may take shortcuts and make mistakes. A professional engineer is one who doubts “themselves.” We always go back one more time to verify—not because we don’t trust the device, but because we don’t trust our own alertness in the final hours of the day. This positive obsession is what saves projects.
6. The Unwritten Heritage of the Field
In remote worksites, when the sun is setting and we are packing up our tools, the banter between engineers is the most real classroom I have ever attended. There, we are no longer talking about sine and cosine formulas; we are talking about the “tricks of the trade.” We talk about how, when the device vibrates in the intense coastal wind, placing a sandbag on the tripod can reduce frequency oscillation. Or how, by looking at the type of vegetation or the condition of the bedrock, one can guess whether the ground beneath our feet has enough stability for setup.
This knowledge is unwritten. It is the “field culture” passed from one generation to the next. No university teaches you how to revive your digital device when the weather is severely cold and the screen has slowed down, using body heat or special covers. This is the “field value engineering” that ensures a project doesn’t stop during a crisis. We learned this knowledge not from books, but from the failures of our predecessors. We learned to have deep respect for those who stood on these rocks before us and, without today’s satellite equipment, drew maps with millimeter precision that, even decades later, remain the sturdy pillars of construction projects. This legacy is our greatest asset—an asset stored in no cloud server and obtained only by being in the field, touching the stones, and feeling the wind.
This legacy builds the generation after us. The young surveyor standing next to us today, learning how to tie down the tripod in a cold wind, will pass this same knowledge to the next person ten years from now. An unwritten chain that continues only through “presence”—not by files, not by certificates.
7. Final Word: Beyond the Instrument (When Experience Replaces Technology)
As we reach the end of the work and pack the instruments into their specialized cases, when we look back at the path traveled, we realize that what we did was more than measuring distances and angles. We were “translating the land.” We converted the rugged language of rocks, the variable language of winds, and the language of the valley’s silence into numbers.
Surveying technology advances every year. Laser scanners become more accurate, drones create amazing 3D images, and cloud processing systems analyze data in minutes. But let me tell you one truth: none of these can replace the “engineer’s eye.” No AI can understand why, at a certain point in the valley, the ground is unstable, or why one should not trust the signal of a certain station.
This experience is stored in no database. This experience is in the calluses on our hands, in the instinctive understanding of air temperature changes, and in that small sixth sense that tells you when you set up the tripod: “This isn’t a good spot, move back a little.”
In these rugged areas, we respect our expensive tools, but we do not consider them the “reference of truth.” The truth of the land is what lies beneath our feet. The truth is the effort we make to understand it, even when nature does not want to be discovered.
Ultimately, surveying in difficult regions is a moral school. It teaches us to be humble. It teaches us that before the vastness of the land, we are only witnesses. Witnesses who must report the land’s story with precision, honesty, and impartiality for future projects. Every line drawn on our map paper is our signature—our signature on the safety of a structure destined to last for years on this rebellious land.
This is what makes us engineers. Not machines, not maps, not software; but that moment we stand, look, and decide how to narrate the truth of the land. And this is the most beautiful part of our work; the place where we, in the calm after the storm, look at the final map and know: “We understood this land.”
